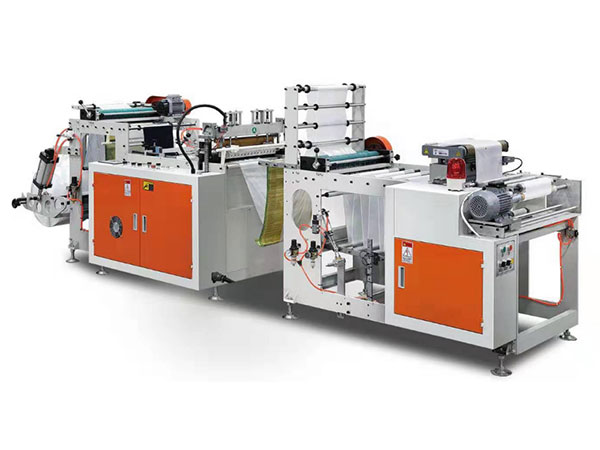

Automatic T-shirt Plastic Bag Machine
Automatic T-shirt Bag Machine
Automatic T-shirt Bag Machine

Automatic T-shirt Plastic Bag Machine

Automatic Plastic shopping bag machine is suitable for heat-sealing and thermal cutting of such plastic films as LDPE and HDPE etc. And it is a kind of ideal equipment for specially producing shopping bag automatic.

1.Plastic T-shirt bag machine uses step motor or servo motor for feeding, machine speed control by computer.

2.Machine with automatic punch device.

3.Bag machine easy to change bag size by computer.

4.Automatic biodegradable T-shirt bag machine is specialized for manufacturing shopping bag or  T-shirt bag.

5Available produce double lines T-shirt bag,bag can with square bottom,call standard bag.

6.Equipped with 2 photocells,2 lines can produce printed bag at same time.

7.This machine can produce 2 lines bag,produce 2 unpinted bags at same time.

8.Machine simple design,easy operate.

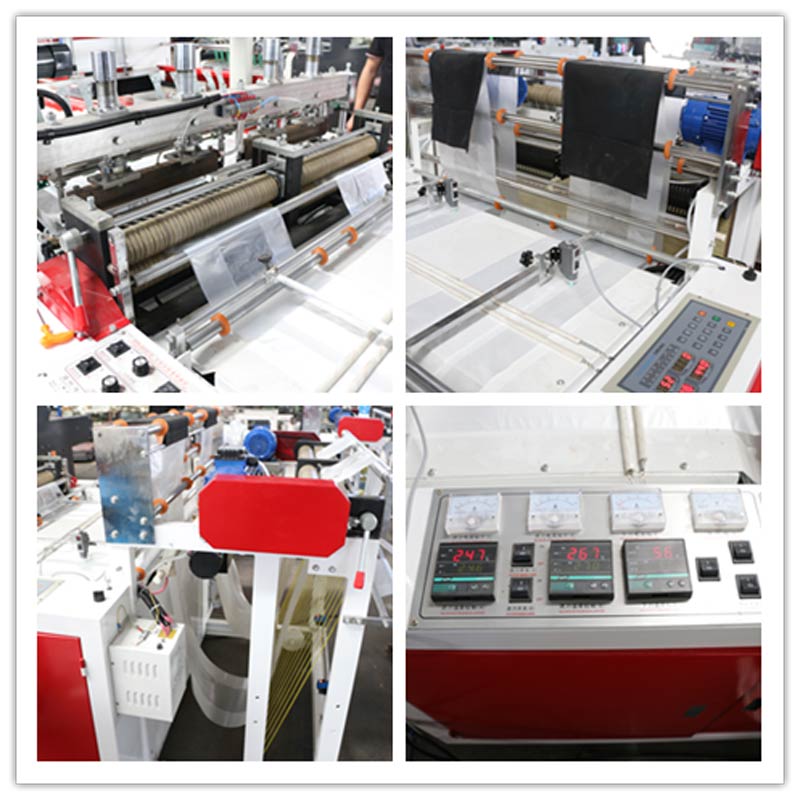

Automatic T-shirt Bag Machine

Automatic T-shirt Bag Machine



Main Technical Variables:

Model

DFHQ-450X2

Max Bag width

400mmX2

Max Bag length

650mm

Line

2 lines

Bag thickness

0.015-0.035mm

Bag printed

Can produce printed bag and without printed bag

Bag Material

LDPE,HDPE,LLDPE,recycle film

Bag

T-shirt bag,Shopping bag,super market bag,KFC bag

Bag Color

Transparent,Black,Red,White,blue…bag color changed by mastbatch

Machine speed

140-200pcs/minX2

Air pressure

5kg/cm2

Total Power

9kw

Weight of machine

1600kg

Overall dimensions

6X1.4X1.6m(L X W X H)

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Material Core Diameter

76mm

Machine Working Time

24 hours * 7 days

Warranty

1 year

Technical Assistance

Engineers available to service machinery overseas





If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load(LCL).

Automatic T-shirt Bag Machine

Our Main parts cooperator as following brand,but standard parts all made from China.

Automatic T-shirt Bag Machine

Automatic T-shirt Bag Machine

Automatic T-shirt Bag Machine

Automatic T-shirt Bag Machine
