Rotary Die head Film Blowing Machine

Rotary Die-head Film Blowing Machine
Rotary Die-head Film Blowing Machine

Product description

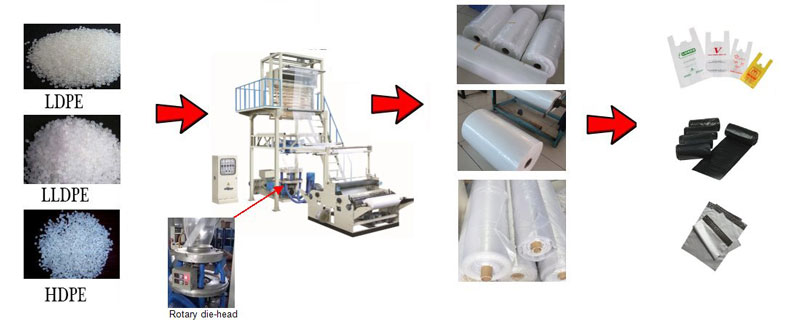

This machine with extruder,cylinder and screw rods of machine are made of quality alloy steel that have been nitrized and processed in a precision way. So it is in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity. It is applied to blowing the plastic films like low density polyethylene (LDPE), high density polyethylene (HDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.

Rotary Die-head Film Blowing Machine

Characteristics:

Model

SJ-B50

SJ-B55

SJ-B60

SJ-B65-1

Material

LDPE, LLDPE,HDPE,virgin raw material, recycled material,

CaCO3 compound,masterbatch and additives material

Film Color

Transparent,Black,Red,White,blue…bag color changed by Masterbatch

Usage

Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film

Diameter of screw

φ50

φ55

φ60

φ65

Reduced diameter of film

100-600 mm

200-800 mm

300-1000 mm

400-1200 mm

One side film Thickness

0.01-0.10 mm

Max.capacity (Kg/h)

35

50

65

80

Ratio of Screw L/D

28:1

28:1

28:1

28:1

Screw material

38CrMoAl

38CrMoAl

38CrMoAl

38CrMoAl

Power of main motor(kw)

7.5-11

11-15

18.5-22

22

Power of Traction

1.1 kw

1.1 kw

1.5 kw

1.5 kw

Heating Power(kw)

11

13

19

21

Delivery Day

30-45 days

30-45 days

30-45 days

30-45 days

Machine size (m)

4.8x1.9x3.8

5.5x2.1x4.6

6.5x2.3x5.2

6.5x2.5x5.2

Weight(T)

1.5T

2T

2.3T

2.6T

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Material Core Diameter

76mm(3 inch)

Machine Working Time

24 hours * 7 days

Warranty

1 year

Optional Devices

Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder

Technical Assistance

Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.



All of our machines with 1 year guarantee.

Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).

Rotary Die-head Film Blowing Machine

Install machines in Saudi Arabia.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

Rotary Die-head Film Blowing Machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load(LCL).

Rotary Die-head Film Blowing Machine

Our Main parts cooperator as following brand,but standard parts all made from China.

Rotary Die-head Film Blowing Machine

How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company

Rotary Die-head Film Blowing Machine
