3 layer blown film extrusion machine

3 layers co-extrusion film blowing machine is widely used for general packaging films, such as liquid packaging films, shrinkage / stretching films, electrostatic protective films, pond waterproof films, repackaging films, etc.

three layers LDPE HDPE EVA Film Blowing Machine

three layers LDPE LLDPE EVA film extursion

three layers LDPE PP EVA Film Blowing Machine

three layers LDPE MLDPE EVA Film Blowing Machine

three layers MLDPE HDPE EVA Film Blowing Machine

three layers water bag Film Blowing Machine for

three layers blown film extrusion

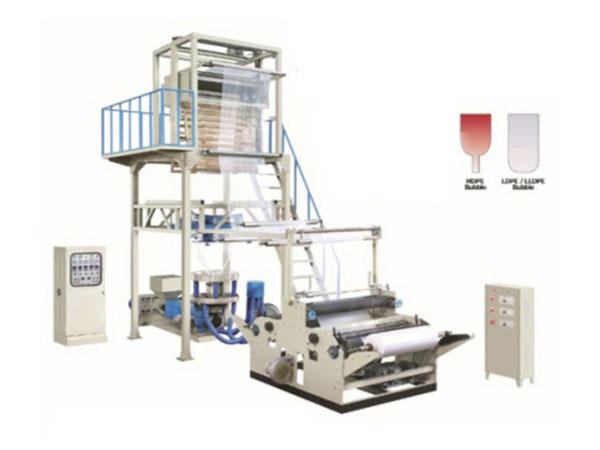

Three Layers Film Blowing Machine

Three layers film blowing machine,use polyethylene High-density polyethylene HDPE, Low density polyethylene (LDPE),EVA to produce function film,suit for general packaging products such as hot shrink film,pack film,water bag and other products.

Main machine: All main machines of adopt screws that feature excellent hardness and wear resistance. It can still plasticize a large number of particles under the environment of high speed and high pressure.

Die-head: 3-layer co-extrusion blown film machines adopts a special structure with 3-layer cone.We are sure that after a high degree of polishing and coating, each runner has the ability to clean itself under the high pressure and high speed scouring of high-speed screw

Optional Device:

1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment

Main Technical Variables

Model	3SJ-G1000	3SJ-G1200	3SJ-G1500
Tube Film Width	1000mm	1200mm	1500mm
Film Open Width	2000mm	2400mm	3000mm
Material	LDPE,LLDPE,HDPE,MLDPE,EVA,recycle material
Air Ring	Double Lip Air ring
Screw Diameter	ф55×2 ф60×1	ф60×2 ф65×1	ф65×2 ф70×1
Screw Ratio L/D	28：1	28：1	28：1
Screw Speed	15-150r/min	15-150r/min	15-150r/min
Main Motor Power	15Kw×2 18.5Kw×1	18.5Kw×2 22Kw×1	22Kw×2 30Kw×1
Capacity(Single)	50kg/h	80kg/h	100kg/h
One side film thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Power	76Kw	88Kw	102Kw
Machine size(cm)	66×41×50cm	68×43×60cm	70×48×75cm
Machine Weight	4T	5T	6T
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Material Core Diamater	76mm
Machine Working Time	24 hours * 7 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

All of our machines with 1 year guarantee.

Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).

Install machines in Saudi Arabia.

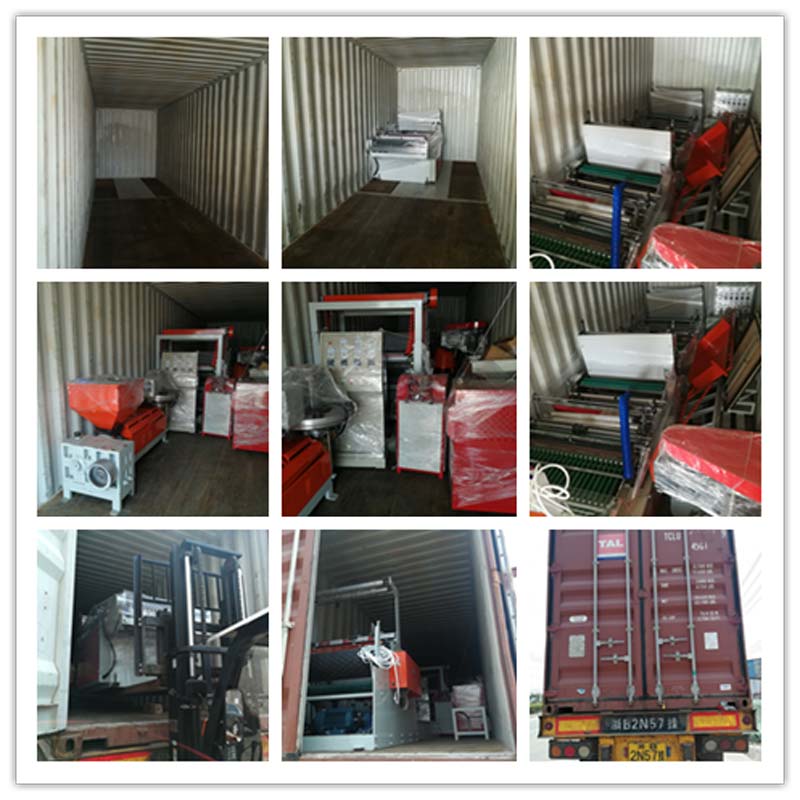

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.

How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
