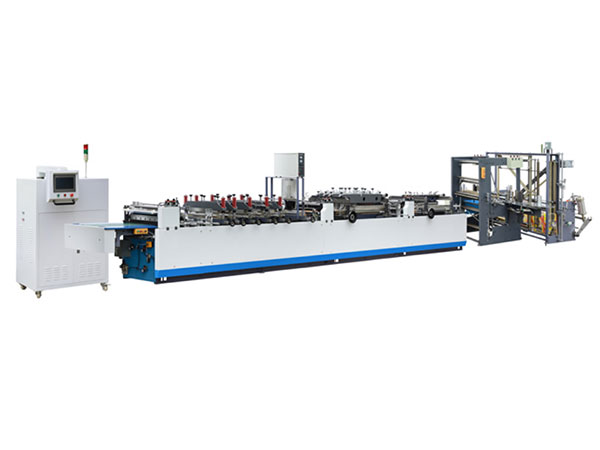

High-speed Three-side Sealing Zipper Standing Bag Making Machine (Three Servo Motor Control)
High-speed Three-side Sealing Zipper Standing Bag Making Machine (Three Servo Motor Control)
High-speed Three-side Sealing Zipper Standing Bag Making Machine (Three Servo Motor Control)

High-speed Three-side Sealing Zipper Standing Bag Making Machine (Three Servo Motor Control)

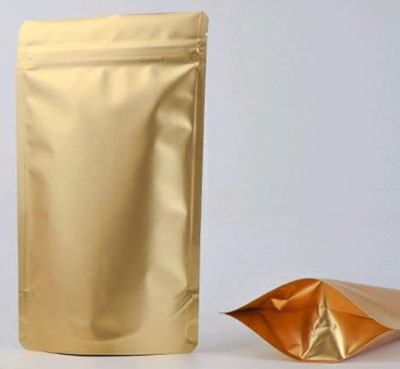

is suitable for producing two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and bottom self standing function which take BOPR PET, CPR PE, nylon, aluminum foil and paper as base material. This machine has advantages of easy operation, smooth product, beautiful appearance, high-strength thermal edge sealing and high Bag Making speed, it is a kind of ideal equipment for packing and making pouches.

Three-side Sealing Zipper Standing Bag Making Machine (Three servo motor)

High-speed Three-side Sealing Zipper Standing Bag Making Machine (Three Servo Motor Control)

High-speed Three-side Sealing Zipper Standing Bag Making Machine (Three Servo Motor Control)

High-speed Three-side Sealing Zipper Standing Bag Making Machine (Three Servo Motor Control)

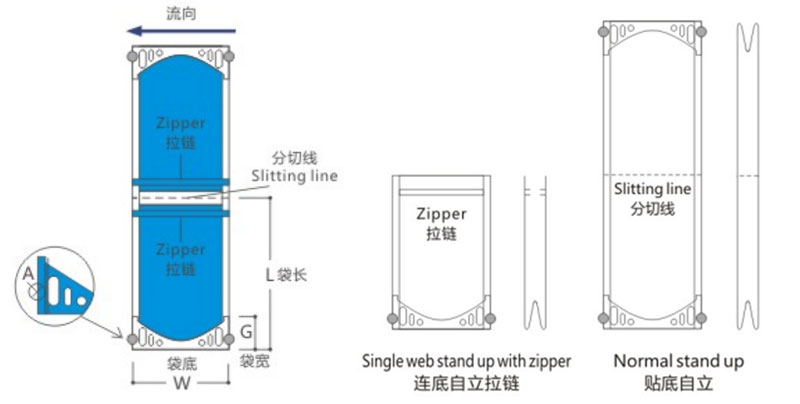

w:60-250mm (When >250, use Double mode feed)

L:120-270mm (When two lines bag making)

G:20-70mm

Remark: Skip feeding function available for length over 400mm.

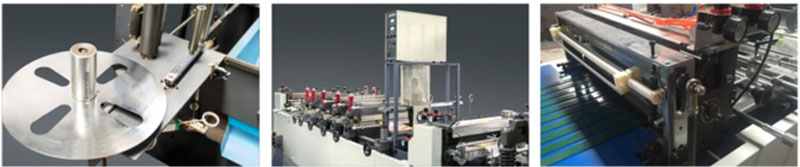

1. Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.

2. Constant auto-tension control for unwinding, EPC edge position controller, AC inverter constant speed auto material feeding.

3. Imported double servo-motor material dragging control system.

4. Main motor for up-down sealing and pressing equipped with inverter.

5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.

6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator.

7. Temperature adjustment range: 0~300°C.

8. Counter: quantity, batch accumulation, preset available.

9. Operation Method: by length fixation control and/or by photocell tracking control.

10.Punching device: working rhythm can preset as continuous, interval or stop, punching time can be preset.

11.Material Skip Feeding: one to six times available.

12.Batch Conveying Function available, the quantity of batch can be preset.



KDZD-E600

Max.Diameter of roll material

600mm

Max.Width of roll material

1250mm

Max.Capacity

160 section/min(pieces/mm)

Max.Mechanical speed

40meter/min

Max.Bag-making Width

600mm

Bag-making Length

50-2400mm

Total Power

65Kw

Weight

7500kg

Outline Dimension

12500x2500x1900mm

Our Main parts cooperator as following brand,but standard parts all made from China.
