ABA three-layer co-extrusion blown film machines produced by our company can realize more energy-saving and flexible production applications at lower costs. For the production line of ABA three-layer co-extrusion blown film machines, two main motors provide three-layer extrusion.
Characteristics:
One main machine provides the inner and the outer coating layers, and the other main machine provides the inner filling layer. It can achieve the goal of reducing the number of main machines, cost, and consumption, and saving energy.
The screw&barrel of the extruder are made of high quality alloy steel with optimum hardness and durable service after precision finishing and nitrogen treatment.
The auxiliary machine has a platform working table for making operation easy and is equipped with bubble stabilizing ring.

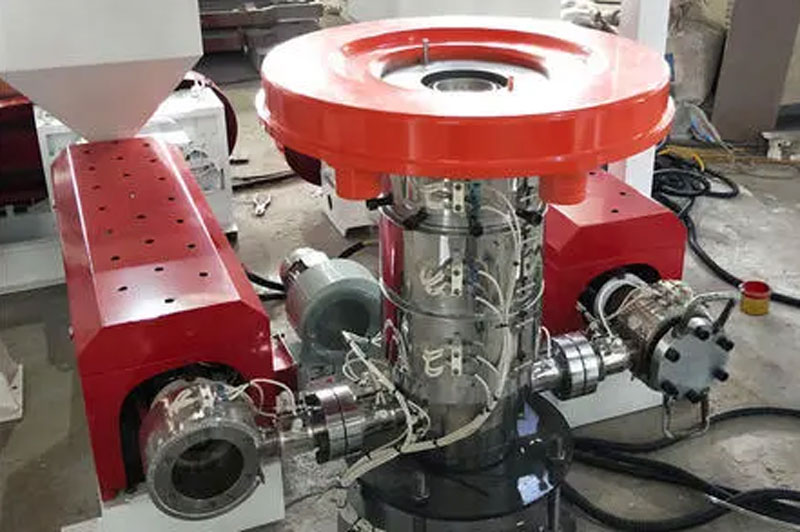

The Die-head of machine adopts a special structure with ABA cone.We are sure that after a high degree of polishing and coating, each runner has the ability to clean itself under the high pressure and high speed scouring of high-speed screws. It will reduce waste in the particle replacement process and shorten the downtime of maintenance.
Optional Device:
1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment
Model |
SJ-ABA600 |
SJ-ABA800 |
SJ-ABA1000 |
SJ-ABA1200 |
Screw&Barrel |
Two |
Two |
Two |
Two |
Screw diameter |
Ф45 Ф50 |
Ф50 Ф50 |
Ф55 ф60 |
Ф60 Ф65 |
L/D |
30:1 |
30:1 |
30:1 |
30:1 |
main motor(kw) |
15kw 18.5kw |
18.5kw 22kw |
22kw 22kw |
22kw 30kw |
Tube film width(mm) |
600 |
800 |
1000 |
1200 |
Open Film width(mm) |
1200 |
1600 |
2000 |
2400 |
One side film thickness(mm) |
0.015-0.10mm |
0.015-0.10mm |
0.015-0.10mm |
0.015-0.10mm |
Max. Output(kg/h) |
35 |
40 |
65 |
80 |
Air Ring |
Double Lip Air ring |
|||
Material |
LDPE,HDPE,LLDPE,EVA,MLDPE,recycle material |
|||
Film Color |
Transparent,Black,Red,White,blue…bag color changed by masterbatch |
|||
Usage |
packing film,table cover,shrink film,plastic bag,water bag |
|||
Heating Power(kw) |
20 |
26 |
30 |
42 |
Measurement (m) |
4.2×2.0×4 |
4.2×2.2×4 |
4.6×2.4×4.6 |
5×2.8×5 |
Weight(T) |
3.5 |
4 |
5 |
6 |
Power Voltage |
220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...) |
|||
Material Core Diameter |
76mm |
|||
Machine Working Time |
24 hours * 7 days |
|||
Warranty |
1 year |
|||
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice. |
All of our machines with 1 year guarantee.
Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).
Install machines in Saudi Arabia.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load(LCL).
Our Main parts cooperator as following brand,but standard parts all made from China.
How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
