High Speed Film Blowing Machine
High Speed Film Blowing Machine
High Speed Film Blowing Machine

High Speed Film Blowing Machine

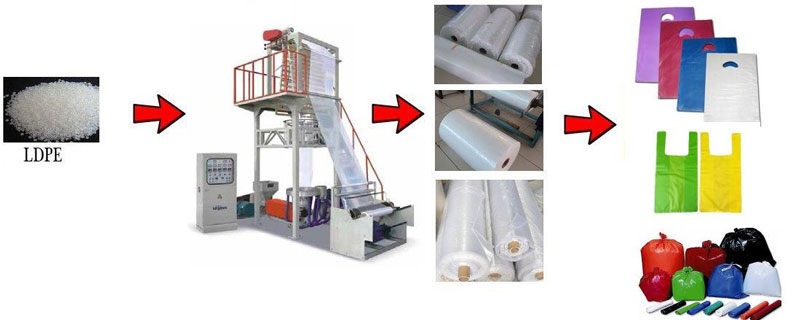

High Speed film blowing machine with high speed screw and barrel,equip with big motor and inverter,can produce high capacity polyethylene film,suit for general packaging products such as T-shirt bags, supermarket bags,shopping bag,flat bags,sachet water bag,packing film and many others.

It is used to blowing polyethylene LDPE/HDPE, which has been widely used to produce film for packing film, clothing bag,rubbish bag and T-shirt bag,etc. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricby 30%.The screw and barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is big or small, it can achieve the best effect of cooling.



Optional Device:

1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment

Model

SJ-A50H

SJ-A55H

SJ-A60H

SJ-A65H

Usage

Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film

Diameter of screw

 Φ50

Φ55

Φ60

Φ65

Mould size

HD: Φ60,LD: Φ150

HD: Φ80,LD: Φ180

HD: Φ100,LD: Φ220

HD: Φ120,LD: Φ250

Reduced diameter of film

100-600 mm

200-800 mm

300-1000 mm

400-1200 mm

One side film Thickness

HD:0.008-0.08mm,LD:0.02-0.1mm

Max.capacity (Kg/h)

35-50kg/h

40-70kg/h

60-100kg/h

80-120kg/h

Ratio of Screw L/D

30:1

30:1

30:1

30:1

Screw material

38CrMoAl

38CrMoAl

38CrMoAl

38CrMoAl

Power of main motor(kw)

15

18.5

30

37

Power of Traction

1.1 kw

1.1 kw

1.5 kw

1.5 kw

Heating Power(kw)

11

13

19

21

Delivery Day

30-45 days

30-45 days

30-45 days

30-45 days

Machine size (m)

4.8x1.9x3.8

5.5x2.1x4.6

6.5x2.3x5.2

6.5x2.5x5.2

Weight(T)

1.5T

2T

2.3T

2.6T

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Material Core Diameter

76mm(3 inch)

Machine Working Time

24 hours * 7 days

Warranty

1 year

Optional Devices

Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treater, embossing roller, automatic winder, double winder

Technical Assistance

Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.



All of our machines with 1 year guarantee.

Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).

Install machines in Saudi Arabia.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load(LCL).

Our Main parts cooperator as following brand,but standard parts all made from China.

How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
