Film Blowing Machine With Gravure Printing Machine

Film blowing machine connect Gravure Printing machine,can produce film and print film one line,save labour,save cost.Polyethylene film blowing machine is economic design,suit for new beginner who look to start the film production business.

Film Blowing Machine With Gravure Printing Machine

Film blowing machine produce high quality film,suit for general packaging products such as flat bag,T-shirt bags, supermarket bags,shopping bag,sachet water bag,packing film and many others.

Film extruder Connect with two colors Gravure Printing machine ,printing machine speed as same as film blowing machine speed.We can add printing machine colors as buyer request.

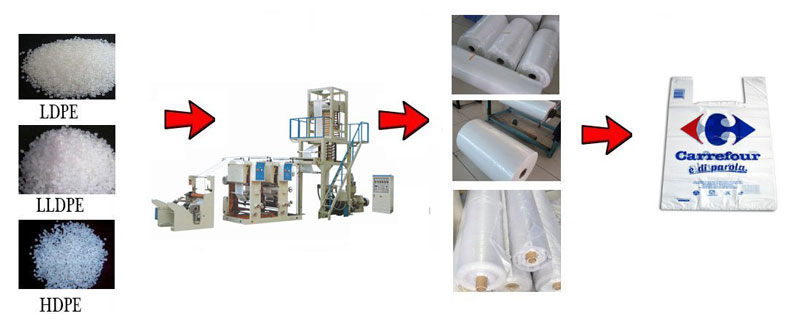

Plastic film blowing machine is to heat and melt plastic particles and then blow them into thin films. It produces membranes, which are widely used in many fields according to their materials and properties. It is suitable for all kinds of high-grade film packaging, plastic bag film, protective film and so on. Because of its good barrier, fresh-keeping, moisture-proof, frost-proof, oxygen-proof and oil-proof, the film can be widely used in light and heavy packaging, such as various fresh fruits, meat products, pickles, fresh milk, liquid beverages, medical supplies, etc.

Optional Device:

1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment

Model	SJ50- ASY2600	SJ55- ASY2800	SJ60- ASY21000
Blowing Flim Width	600mm	800mm	1000mm
Printing Width	600mm	800mm	1000mm
Printing Length	191-1200mm	191-1200mm	191-1200mm
Printing Color	2 colors
Mterials	LDPE,HDPE,LLDPE,recycle material
Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Usage	Plastic Shopping Bag,T-shirt bag,trash bag,packing film,table cover,shrink film
Screw Dia.	50mm	55m	60mm
Screw L/D Ratio	28:1	28:1	28:1
Blow Film Motor Power	11Kw	15Kw	18.5Kw
Max. Capacity	35kg/h	50Kg/h	65Kg/h
Film I lead DIA	φ60、φ 100	φ80、φ150	φ100、φ200
Blow film thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Total Power	28Kw	32Kw	40kw
Weight	3.5T	4T	5T
Dimensions (m)	6x2.4x4	6.2x2.6x4.3	6.4x 2.8x 4.8
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Material Core Diameter	76mm
Machine Working Time	24 hours * 7 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

All of our machines with 1 year guarantee.

Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).

Film Blowing Machine With Gravure Printing Machine

Install machines in Saudi Arabia.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

Film Blowing Machine With Gravure Printing Machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Film Blowing Machine With Gravure Printing Machine

Our Main parts cooperator as following brand,but standard parts all made from China.

Film Blowing Machine With Gravure Printing Machine

How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
