Double Die Head Film Blowing Machine

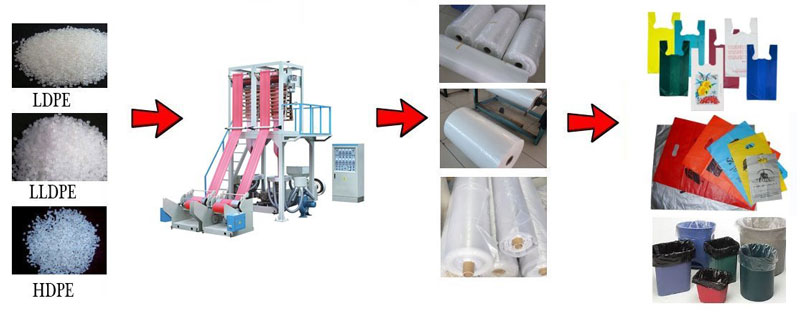

This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethylene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.

Double Die Head Film Blowing Machine

Features:

Both the cylinder and screw of machine are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance., Scientifically designed, this machine set has two heads with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.

Optional Equipments:

1)Auto Loader
2)Air Compressor
3)Rotary Die Head
4)Double Side Winder(Back to back winder)
5)Up and Down
6)Embossing Cylinder
7)Air Shaft
8)Masterbatch Dosing device
9)Automatic Winder Changer
10) Corona treatment

Model	SJ-65FM-600	SJ-70FM-700	SJ-75FM-800
Max film width	550mm×2	650mm×2	750mm×2
Die head	Two pieces	Two pieces	Two pieces
Material	HDPE, LDPE, LLDPE virgin raw material, recycled material, CaCO3 compound, masterbatch and additives material
Film Color	Transparent,Black,Red,White,blue…bag color changed by masterbatch
Usage	Flexible packaging bags,T-shirt bag,Plastic Shopping Bag,trash bag,packing film,table cover,shrink film
Screw Diameter	65mm	70mm	75mm
Screw Ratio L/D	1:28	1:28	1:28
Screw Speed	10-110r/min	10-110r/min	10-110r/min
Max.Output	50kg/h	70kg/h	90kg/h
one side film thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Power of Main Motor	18.5-22Kw	22-30Kw	37Kw
Total Power	40Kw	55Kw	70Kw
Weight of Machine	3000kg	3800kg	4500kg
Overall Dimensions	4800×2200×3800	5000×2400×4000	5200×2600×4200
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Paper Diameter	76mm(3 inch)
Machine Working Time	24 hours * 7 days
Warranty	1 year
Optional Devices	Auto loader, masterbatch dosing system, rotary die head, bubble controller, corona treatment, embossing roller, automatic winder, double winder
Technical Assistance	Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

All of our machines with 1 year guarantee.

Our machines are well favoured by customers due to easy operation, perfect performance, easy maintenance good & prompt after sale service.
If you need installment or training service,we can send engineer to your country,
help you install machines,training your workers to use machine(you need pay double way air tickets,salary,food,hotel for our engineer).

Double Die Head Film Blowing Machine

Install machines in Saudi Arabia.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).

Double Die Head Film Blowing Machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Double Die Head Film Blowing Machine

Our Main parts cooperator as following brand,but standard parts all made from China.

Double Die Head Film Blowing Machine

How To Find Polyethylene For Blown Film Extrusion?
Extrusion Film Extrusion use Polyethylene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company

Double Die Head Film Blowing Machine
