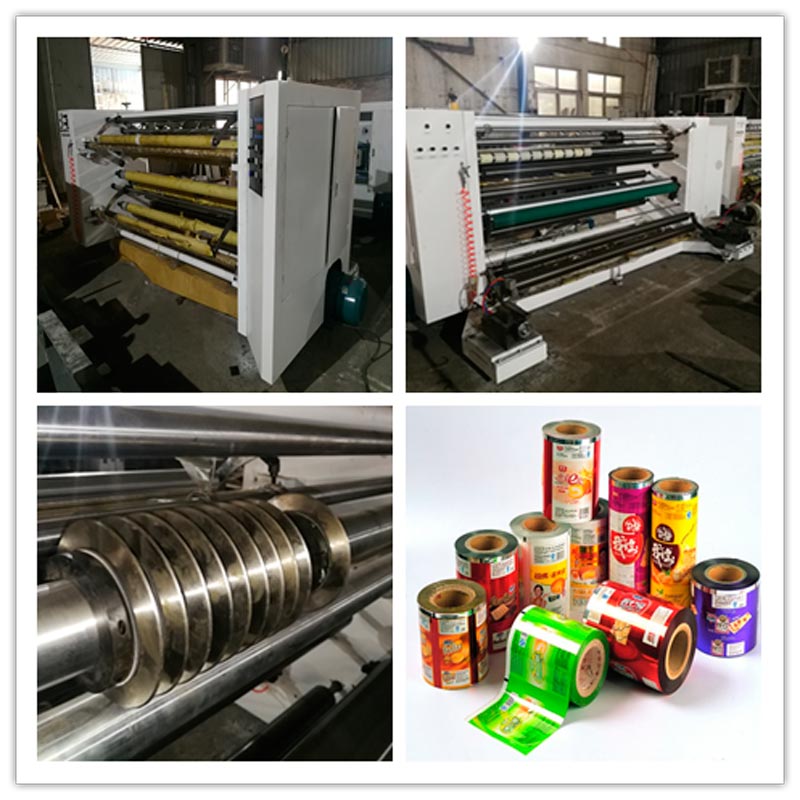

Horizontal slitter  is an ideal equipment which is suita for slitting all kinds of roll materials,such as printing laminating film, aluminum film,BOPP film, PET film and PVC film, etc. This machine equip with inveter,magnetic powder tension control,PLC,meter account device.

Feature:

1. Suit to paper,LDPE film,HDPE film,LLDPE film,BOPP film,PP film,PET film,

2.Edge position control and automatic tension control

3.meter account,machine can stop automatic

4.Machine power 220V,380V,440V,480V

5.Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.

6.We are welcomed customers Customized machines or OEM design.

Horizontal Slitting Machine



Main Technical Parameter:

Model

WFQ-B1100

WFQ-B1300

WFQ-B1600

Max.width of unwinding

1100mm

1300mm

1600mm

Max.diameter of unwinding

Φ1400mm

Φ1400mm

Φ1400mm

Min.width of slitting

20mm

20mm

20mm

Max.diameter of rewinding

Φ500mm

Φ500mm

Φ500mm

Max.Speed

200m/min

200m/min

200m/min

Precision of slitting

±0.2mm

±0.2mm

±0.2mm

Total Power

7kw

7kw

8.5kw

Suitable power supply

380V/50Hz

380V/50Hz

380V/50Hz

Weight(approx)

2100kg

2300kg

2600kg

Overall dimension

2850x2150x1350mm

2850x2350x1350mm

2850x2650x1350mm

Material

Paper,HDPE, LDPE, LLDPE,PET,BOPP,OPP,CPP film

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Material Core Diameter

76mm(3 inch)

Machine Working Time

24 hours * 7 days

Warranty

1 year

Technical Assistance

Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.



Horizontal Slitting Machine

Horizontal Slitting Machine

Horizontal Slitting Machine

Our Main parts cooperator as following brand,but standard parts all made from China.
