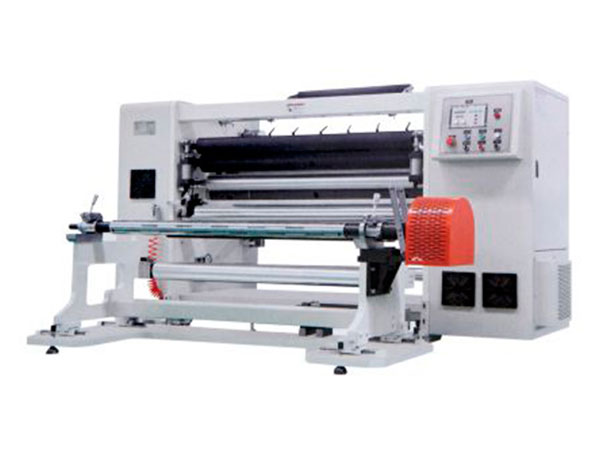

Automatic Slitting Machine

Automatic Slitting Machine
Automatic Slitting Machine
Automatic Slitting Machine

Automatic Slitting Machine

Type: KDFQ-A1300; Max.Width of Mother Roll: 1300mm; Thickness of material: 0.012-0.15mm; Max.Diameter of Mother Roll: Φ500mm; Max. Rewinding diameter: Φ600mm; Min. Width of Final Roll: 50mm-1300mm; Max. Machinery Speed : 300m/min

Automatic Slitting Machine

Type

KDFQ-A1300

Max.Width of Mother Roll

1300mm

Thickness of material

0.012-0.15mm

Max.Diameter of Mother Roll

Φ500mm

Max. Rewinding diameter

Φ600mm

Min. Width of Final Roll

50mm-1300mm

Max. Machinery Speed

300m/min

Max. slitting Speed

200-250m/min

Material

Paper,HDPE, LDPE, LLDPE,PET,BOPP,OPP,CPP film

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Material Core Diameter

76mm(3 inch)

Machine Working Time

24 hours * 7 days

Warranty

1 year

Technical Assistance

Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.



Automatic Slitting Machine



Automatic Slitting Machine

Automatic Slitting Machine

Our Main parts cooperator as following brand,but standard parts all made from China.

Automatic Slitting Machine



Automatic Slitting Machine

Automatic Slitting Machine

Automatic Slitting Machine
