Six Colors High Speed Flexographic Printing Machine
Six Colors High Speed Flexographic Printing Machine
Six Colors High Speed Flexographic Printing Machine

Six Colors High Speed Flexographic Printing Machine

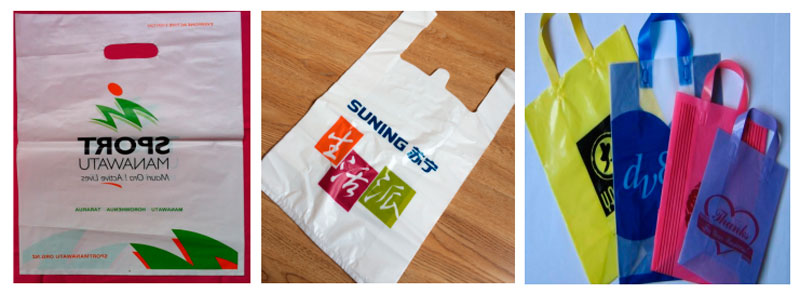

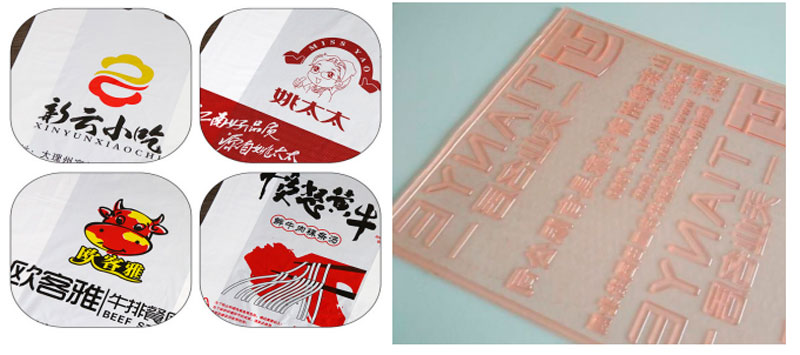

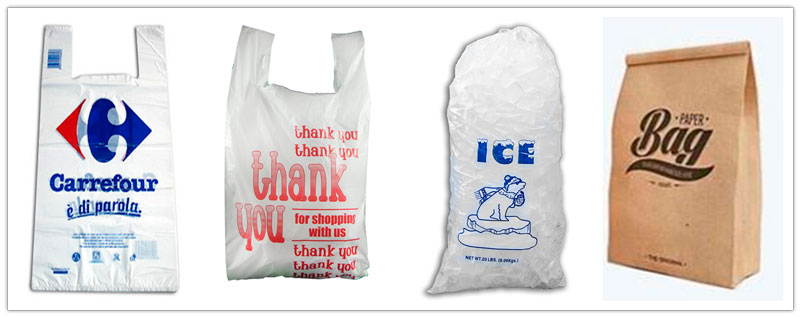

Flexographic printing machine adopt sensitization resin as flexible printing plate, It is suitable for printing such packing materials as polyethylene,polypropylene bag,cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.

Six Colors High Speed Flexographic Printing Machine

Six Colors High Speed Flexographic Printing Machine

Performance:

Easy operation,flexible starting,accurate color register.

the meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.

Pneumatic printing cylinder lift and lower, is will stir the printing ink automatically after lifting .

the printing ink is spread by the anilox cylinder with even ink color.

Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

360°continuous and adjustable longitudinal register device.

The frequency control of motor speed adapts to different printing speeds.

There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Six Colors High Speed Flexographic Printing Machine

Six Colors High Speed Flexographic Printing Machine





YT-A6600

YT-A6800

YT-A61000

YT-A61200

Max.material width

600mm

800mm

1000mm

1200mm

Max.printing width

560mm

760mm

960mm

1160mm

Heating power

35kw

35kw

35kw

35kw

Machine weight

5000kgs

5200kgs

5400kgs

5600kgs

Outline dimension

6x1.8x3.5m

6x2.0x3.5m

6x2.2x3.5m

6x2.4x3.5m

Printing colors

6 colors (6+0,5+1,4+2,3+3)

Printing length

300-1100mm

Machine speed

150m/min

Printing speed

100m/min (120m/min with optional:chamber doctor blade)

Material of Plate

Resin

Suitable Material

PAPER∶15~300g/m²、 NONWOVEN∶15-120G、PC∶10-120μm、OPP∶10-100μm、BOPP∶10-100μm、PE∶15-150μm、NY∶10-120μm、 PET∶10-100μm、CPP∶10-100μm

Adjusting of register

Electric motor control (vertical and horizontal)

Constitution of Printing

Ceramic Anilox roller 6pcs、single doctor blade 6pcs、printing Cylinder for printing length 400mm、 PLC touch screen controller



Optional device :chamber doctor blade;

Working Principle

synchronous belt driving

Printing precision

+/-0.15mm

Thickness of Plate (including the glue)

1.7mm  (please note us for different thickness)

Machine Voltage

380V 50/60HZ 3PH

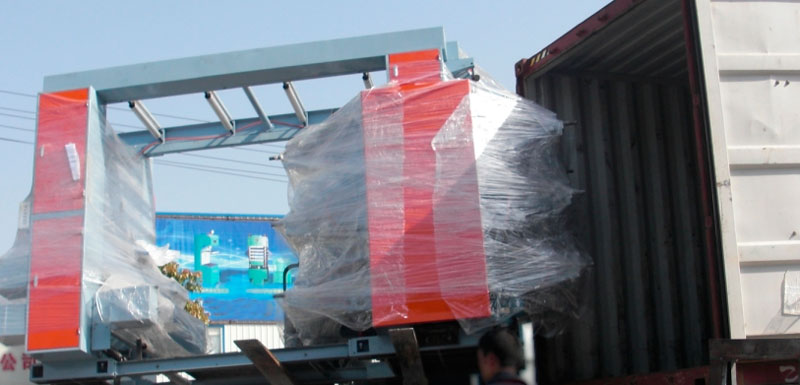

Loading container

FAQ

Q: I need a quotation/How much is your price?

A: Please tell us your materials, width of your material, how many colors do you need.

Then we will know which machine is suitable for your and suggest the right machine for you.



Q: What's your delivery time?

A: Usually finish the production within 30 workdays after your 30% advanced payment

    Actually need to check according our stock & production plan.



Q: How long is your machine's warranty period?

A: All our machine have one year guarantee.


Q: How could we do if the parts broken within warranty?

A: We would express the free replacement parts during the warranty date.
