V Bottom Paper Bag Machine (With Tracking)
V bottom paper bag machine
V bottom paper bag machine

V Bottom Paper Bag Machine (With Tracking)

This machine is used for primary color paper or printed web paper. It is used to make paper bags with pointed bottom at one time. The machine can be used in various paper bags with high speed and efficiency. It is an ideal equipment for paper bag production.

Properties and uses:

This machine is composed of drum feeding (pneumatic feeding, automatic deviation correction, tension adjustment), side gluing,printing paper electric eye tracking,

 base paper into cylinder, fixed-length drawing cutting, bag bottom indentation opening, bag bottom gluing forming, bag out finishing and so on.

The whole machine is controlled centrally by PLC touch screen and servo motor controls the length of paper bag.

V Bottom Paper Bag Machine (With Tracking)

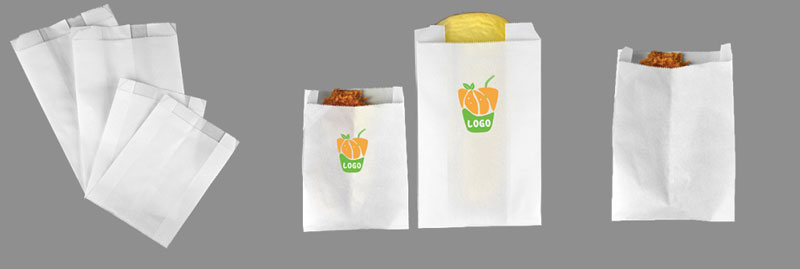

1) This is our new design food paper bag making machine, which used for KFC, Mcdonald's like chips, bakery and so on.

2)Automatic constant tension control for unwinding, Servo Motor system, motor for material feeding with inverter.

3)Main motor with inverter control

4)The machine can be stop automatically once out of material.

5)Wheel type gusset unit with motor driving.

6)Closed type automatic glue application and forming system.

7)Side lay working table, easy operation.

MODEL

KDJD-400P

BAG LENGTH (L)

120-420 MM

BAG WIDTH (W)

80-240MM

INSERT PAPER EDGE (M)

20-100mm (2M)

MACHINE SPEED

50-400 PCS/MIN

MAX PAPER ROLL WIDTH

260-720MM

PAPER WEIGHT

40-80 G/M²

MACHINE POWER

6 KW

OUTLINE DIMENSION

4400X1700X1600 MM
