The paper bag process consists of roll discharge (hydraulic feeding, automatic correction, constant tension), puncture, middle (side) seam gluing, color code tracking, raw material into a cylinder, fixed-length pulling and breaking, bottom gluing, bottom folding, The bottom of the bag is formed and the finished bag is finished in one time This machine is easier to operate, more efficient, and more stable. It is an ideal equipment for producing various paper bags, bread bags, snack food bags, bread bags, dried fruit bags and other environmentally friendly paper bags.

Full Automatic High Speed V Bottom Paper Bag Machine

Model	KDJD-F270	KDJD-F350
Paper bag length（L）	100-445mm	150-760mm
Paper bag width(W)	80-270mm	80-350mm
Inserted edge depth(M)	10-60mm	10-60mm
Step height(H)	17mm	17mm
Paper bag speed	50-500pcs/min	50-500pcs/min
Paper roll width	220-810mm	220-810mm
Max. Diameter of paper roll	Φ1200mm	Φ1200mm
Diameter of Inner paper Core	Φ76mm（3”）	Φ76mm（3”）
Paper thickness	35-80g/m²	35-80g/m²
Working air source	≥0.12m³/MIN，0.6MPa	≥0.12m³/MIN，0.6MPa
Total Power	20kw, 380V 3Phase 50Hz	20kw, 380V 3Phase 50Hz
Weight	5000kg	5000kg
Machine size	7100x2050x1850mm	7100x2150x1850mm

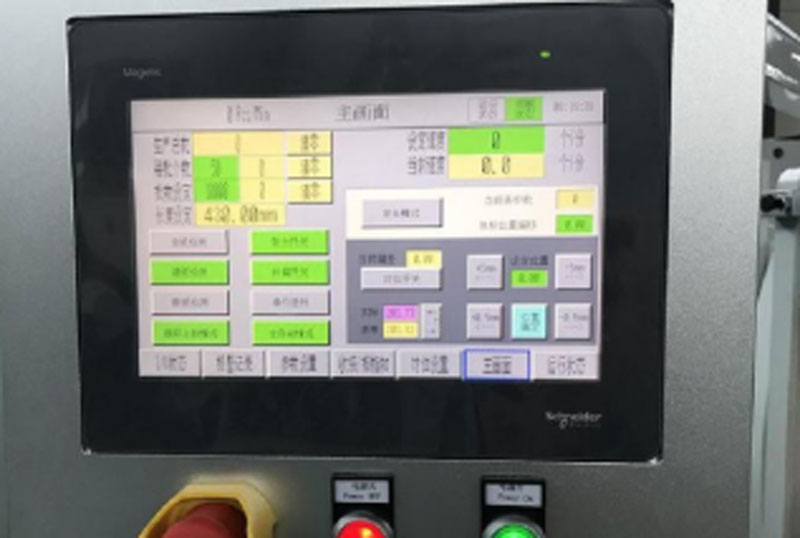

1. Using French SCHNEIDER touch screen man-machine interface, the operating functions are clear and easy to control.

Full Automatic High Speed V Bottom Paper Bag Machine

2.The French SCHNEIDER motion controller (PC) is used to ensure stable high-speed operation through the high-speed bus Ether CAT.

Full Automatic High Speed V Bottom Paper Bag Machine

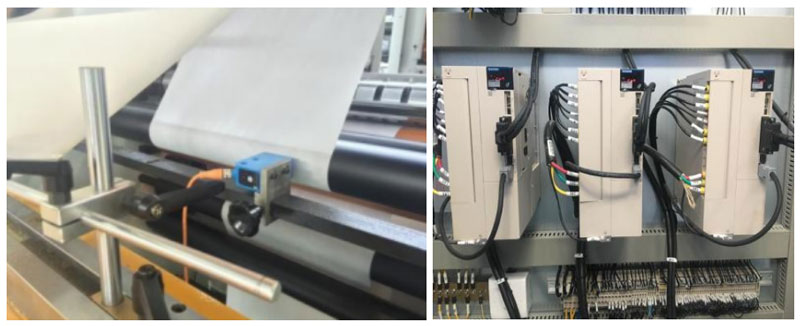

3.The original French SCHNEIDER servo motor is matched with the German original SICK photoelectric eye correction to accurately track the size of the printed bag.

Full Automatic High Speed V Bottom Paper Bag Machine

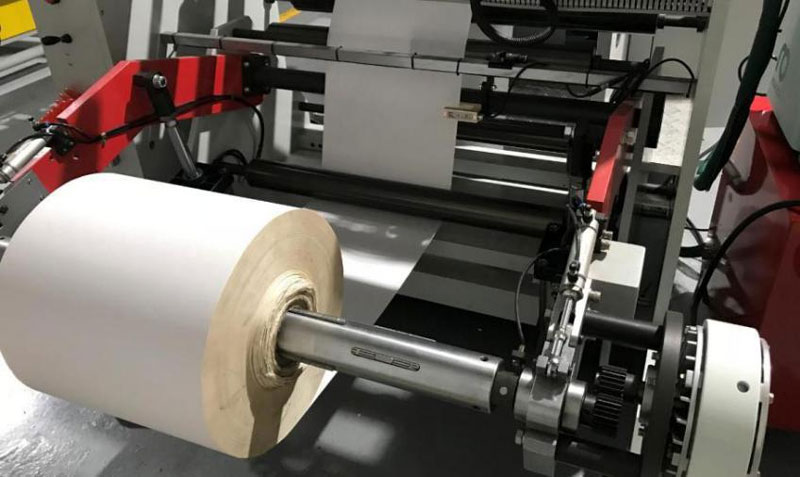

4.Material loading and unloading adopts hydraulic cylinder lifting structure, and unwinding adopt automatic constant tension control.

Full Automatic High Speed V Bottom Paper Bag Machine

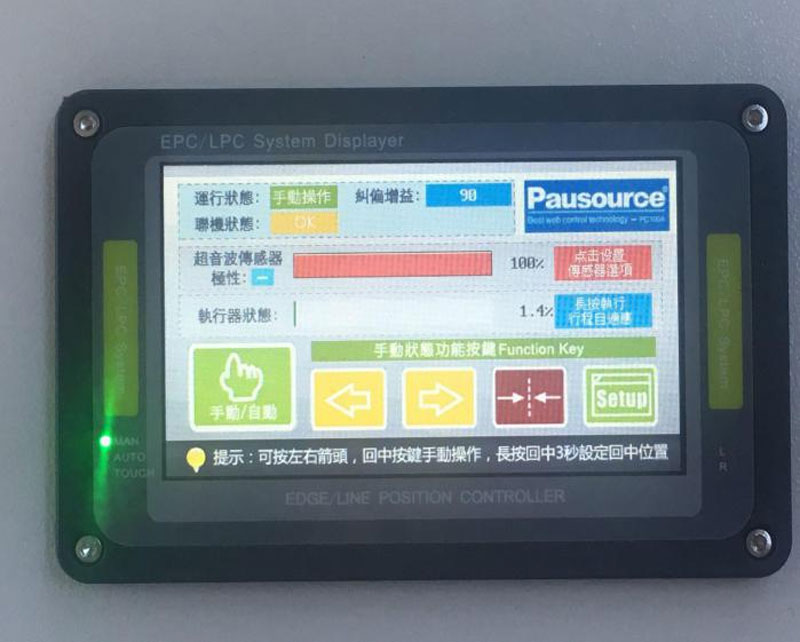

5.The rectification of raw materials adopts Italian SELECTRA, which reduces the time of roll registration adjustment

Full Automatic High Speed V Bottom Paper Bag Machine

Note: The purchased parts used in this machine will be replaced by a brand of the same quality not less than the existing brand when the equipment is upgraded or updated. The Seller reserves the right without further notic.
