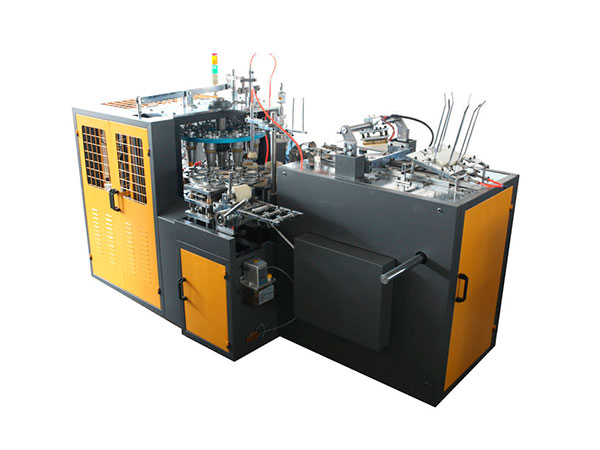

Feature: 1)Open Cam System for machine running, which keep machine running high speed without any problem(long life) and easy maintenance. 2) Open cam paper cup machine main shaft with 65mm diameter which is thicker than normal gear box machine.
Feature:
1) Open Cam Cup Machine design with 2cm height border to prevent oil leaking out
2) Open Cam Cup Machine with Auto Oil Lubrication system for machine self oil lubrication which keep sure machine smooth running and Spare long span life.
3) Open Cam machine base with cement filling which make machine much heavy. It is more stable when running with high speed.
Main Technical Variables:
|
Model |
ZB-OCH12 |
ZB-OCH12 |
|
Side Welding Heater type |
Copper heater |
Ultrasonic heater |
|
Paper Cup Size |
3 ~12 OZ (50ml~330ml Mould exchangeable) |
|
|
Raw Material |
Only one-side PE coated paper ( Popular for Hot drink cups ) |
One or Two side PE coated Paper (Popular for Hot and Cold drink Cups) |
|
Paper Weight |
140gsm—250 GSM |
140gsm---350gsm |
|
Rated Productivity |
60-65pcs/min |
60-65pcs/min |
|
Total Power |
4.8 KW |
6 KW |
|
Air Source |
No need provide Air |
Air pressure:0.4Mpa; |
|
Power Source |
380V 50-60Hz 3Phase or special Power as requirement. |
|
|
Weight |
1800Kgs |
|
|
Machine Size |
2750x1300x1750mm |
|
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
