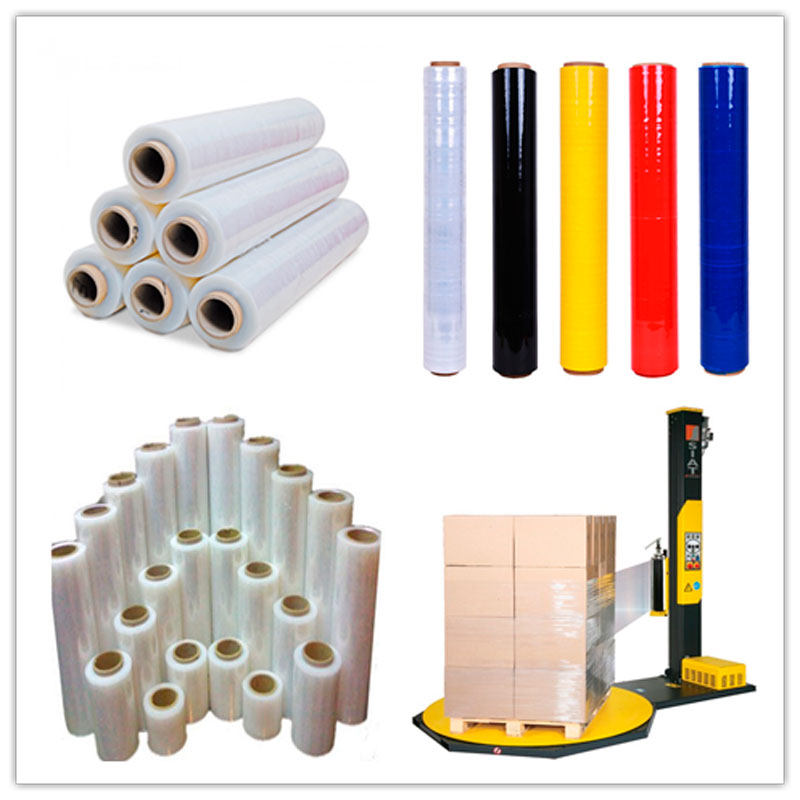

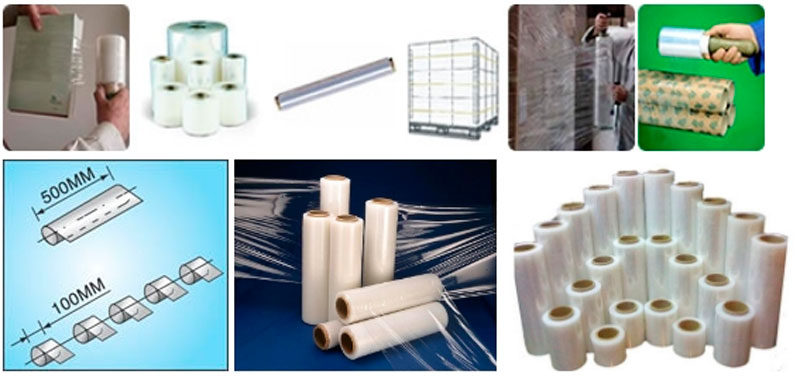

Stretch film machine also called Cast stretch film machine,machine use LDPE and LLDPE to produce stretch film, which widely used for pack airport luggage packing, pallet packing, carton packing, building material packing, auto parts packing, hardware parts packing etc.
1) automatic PLC for the volume and tiles inflatable shaft winding
2) auxiliary light rail electric
3) auto loader
4) waste film automatic extraction recovery device
5) The auxiliary extruder is with new high-speed structure
6) machine with aluminum heating ring (durable, energy saving)
7) The fourth take-up roller is matte frosted roller
8) PLC using Japan's Mitsubishi brand
9)Cooling system: (using spiral flow, ultra-fine grinding, plating hard chrome, cooling water cooling).
10)Hard Tooth Surface Gear Box,made from ShuGuang brand Xiaoshan
11) Air shaft
12)Auto cutting & Automatic roll change
Optional Equipment:
1)Auto load
2)Auto dry hopper
3)Motorize net changer
4)Hydraulic net changer
5)gule pump
6.air compressor
7.Chiller
8.Waste film crush online
Main Technical Parameter
|
Model |
KD-1500*3 |
|
Material |
LLDPE,LDPE,biodegradable material |
|
Screw Diameter |
65mm *2 90mm*1 |
|
Film Layer |
3 layers |
|
L/D Ratio Of Screw |
30:1 |
|
Speed of Screw |
10-120rpm |
|
Film Width |
1500mm (500mm*3rollers) |
|
Film Thickness |
0.017-0.05mm |
|
Film Color |
Transparent,Black,Red,White,blue…bag color changed by masterbatch |
|
Structure of film layers |
A/B/C |
|
Distribution ratio |
30%/40%/30% |
|
Main motor |
22kw x 2 45kw x 1 |
|
Cooling roller |
φ600mm & φ370mm |
|
Max output (kg/h) |
100-220kg/h |
|
Linear speed of machinery (m/min) |
200m/min |
|
Overall dimensions (L*W*H) |
12mx3.8mx3.8m |
|
Power Voltage |
220V,380V,440V |
|
Machine Working time |
24 hours*7 |
|
Material Core Diameter |
76mm(3 inch) |
|
Warranty |
1 year |
|
Technical Assistance |
Engineers available to service machinery overseas |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.
Our Main parts cooperator as following brand,but standard parts all made from China.
