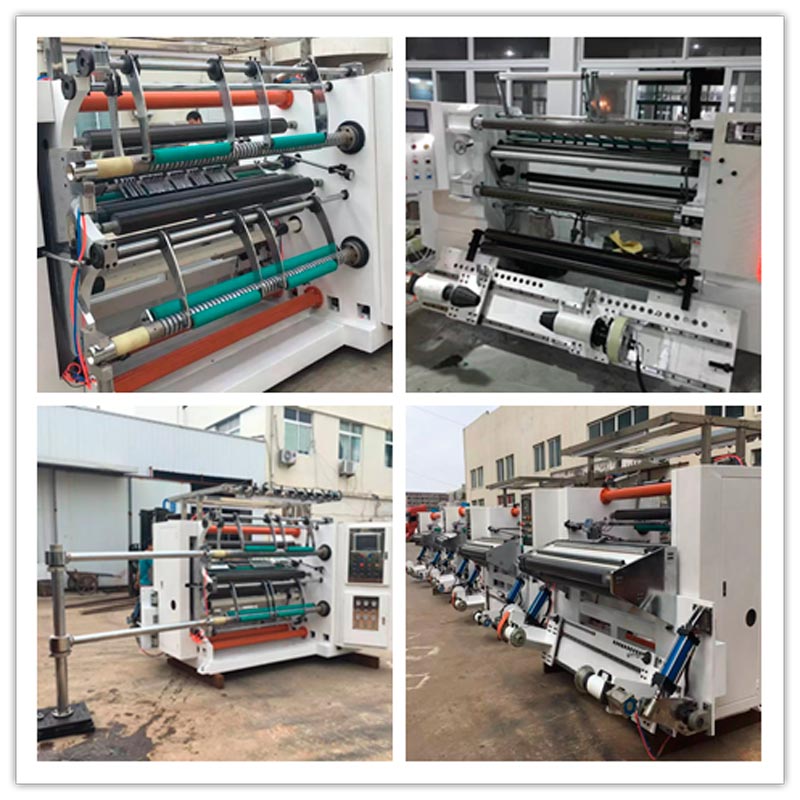

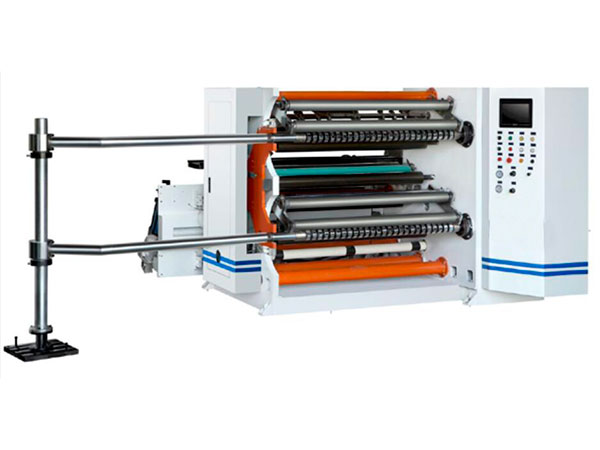

High Speed Slitting Machine (Digital Control)

Unwinding width adjust automatic by hydraulic; Hydraulic automatic loading material; Material-collecting device; Paper core positioning technique(by laser); Servo-driving technique/Vector frequency control; Section tension control technology

High Speed Slitting Machine (Digital Control)

Feature:

1.Change rewinding shaft automatic,decrease the stop time

2.Cutter positioning automatic

3.Automatic unloading system

4.Circle knife slitting mode

5. Expand roll

6.Dancing roll

7.6 inch rewinding mode

8.meter account stop

9.Easy tear on line

10.Air hole on line

11.Gap roll

12. Suit to paper,LDPE film,HDPE film,LLDPE film,BOPP film,PP film,PET film,

13. Machine power 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

14.Afford after sale service,can send engineer to buyer factory,to install machine and afford training service.

15.We are welcomed customers Customized machines or OEM design.

Type	LFQ-E1300	LFQ-E1500
Max.Width of Mother Roll	1300mm	1500mm
Max.Diameter of Mother Roll	Φ800mm	Φ800mm
Thickness of material	20-200μΜ	20-200μΜ
Max. Rewinding diameter	Φ600mm	Φ600mm
Min. Width of Final Roll	30mm	30mm
Max.Slitting Speed (inverter control)	300m/min	300m/min
Max.Slitting Speed (servo motor control)	500m/min	500m/min
Material	Paper,HDPE, LDPE, LLDPE,PET,BOPP,OPP,CPP film
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
Material Core Diameter	76mm(3 inch)
Machine Working Time	24 hours * 7 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas
