Reliable solventless laminator,laminate BOPP, OPP, NY, PVC, CPP,VMCPP,aluminum foil,PET film and etc. More capable, more refined, with five roller coating system

Solventless Lamination Machine Advantages:

1)Rigid shaft-less unwind-rewind units

2)Closed loop tension control via dancer roller

3)Computer Controls for all machine functions

4)Exceptional lamination pressure control for remarkable finished

5)Warrant is one year,machine can running nonstop,24 hours a day, 7 days a week

6)Machine with simple design,easy operate

7)Machine is economic design,suit for new beginner or starters

Technical Parameters:

Item

BGFH-W

Max. Laminating Speed

450 m/min

Max. Laminating Width

1050/1250/1350mm

First Dia.of Unwinding

Max.Φ800mm

Second Dia.of Unwinding

Max.Φ800mm

Glue Spread

1.0-3.0g/m

Laminated Film Type

BOPP, OPP, NY, PVC, CPP,Aluminum foil etc.

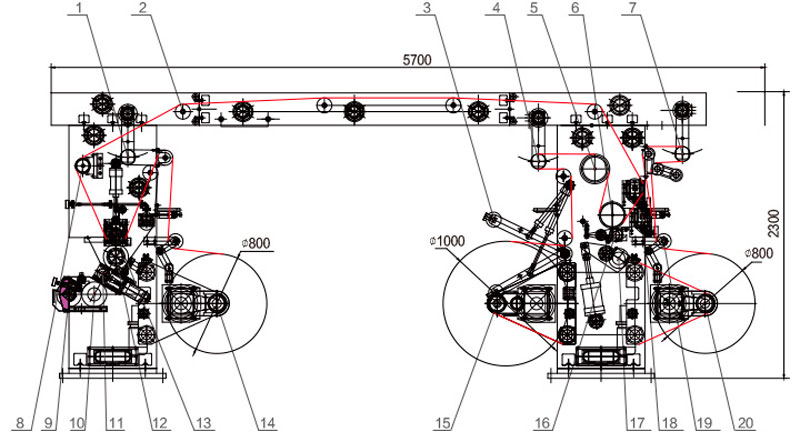

1. Tension Swimming Roller
2. Feeding Guide Roller
3. Rewinding Pressure Roller
4. Tension Swimming Roller
5. Cooling Roller
6. Laminating Roller
7. Tension Swimming Roller

8. Tension Sense Roller
9. Doctor Blade Roller
10. Metering Roller
11. Gluing Roller
12. Coating Roller
13. Coating Pressure Roller
14. The First Unwinding

15. The Rewinding
16.Laminating Pressure Roller
17. Laminating Back Pressure Roller
18. Adjustable Guide Roller
19. Moving Guide Roller
20. The Second Unwinding


Solventless Lamination Machine

Solventless Lamination Machine



Solventless Lamination Machine

Solventless Lamination Machine

Solventless Lamination Machine

Our Main parts cooperator as following brand,but standard parts all made from China.
