The whole machine adopts microcomputer control, with Panasonic servo motor control system. Arbitrary fixed-length, accurate and stable photoelectric tracking, stopping automatically when the label is lost. Automatic pressure synchronous punching and synchronous sealing. Automatic counting, and can set count alarm. Automatic constant temperature, firm and smooth sealing.
Main Technical Variables:
|
Model |
RJHQ-800 |
|
|
Length of bag-making |
250-730mm |
|
|
Width of bag-making |
250-600mm |
|
|
Top-folding edge |
50-75mm |
|
|
Bottom gusseted |
20-70mm |
|
|
Speed of bag-making |

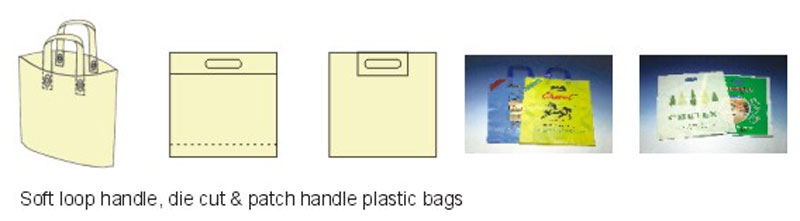

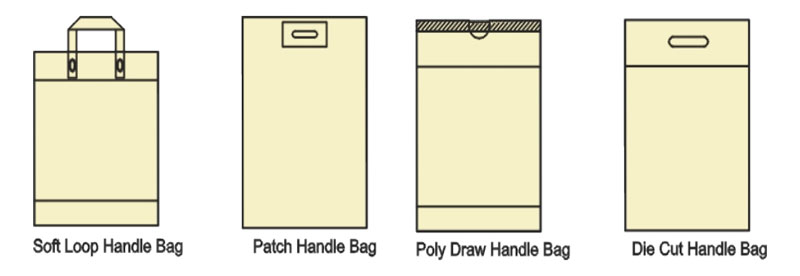

Soft loop handle bag Patch handle bag Poly draw handle bag Die cut handle bag |
60pcs/min 60pcs/min 70pcs/min 70pcs/min |
|
Total power |
13KW |
|
|
Machine weight |
3500kg |
|
|
Machine dimension |
8200*3100*1870mm |
|
|
Bag of Material |
HDPE、LDPE、PP、OPP、BOPP |
|
|
Power Voltage |
220V |
|
|
Material Core Diameter |
76mm |
|
|
Machine Working Time |
24 hours * 7 days |
|
|
Warranty |
1 year |
|
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
