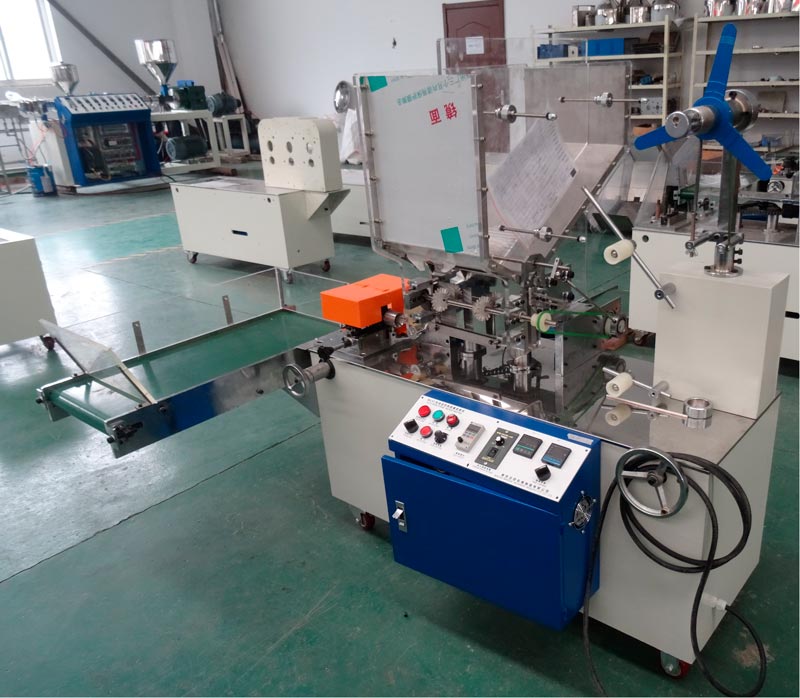

KD-31 drinking straw single auto packing machine is a machine of packing single straw, it can be used paper or film to packing straight straw flexible straw,spoon straw,milk straw, tea straw.The machine provides a high packing rate, and with flexo two colors printing device. Machine with simple design,easy to operate.

TECHNICAL FEATURE

1. Single drinking straw packing, printing, filling packing, cutting at a time

2. Two color printing device

3. Automatic product counting,

4. Packing speed can be adjusted freely



SPECIFICATIONS

Item

KD-31

Capability

250∼450pcs/min

Main motor

1.5kW  (VFD)

Hopper motor

90W

Wrapping material

paper plastic film

Width of material

paper25∼33mm

plastic film25∼60mm

Specifications of straw

Diameter of straw

φ3∼14mm

Length of straw

190∼240mm

Machine weight

600KG

Dimension

1500mm(W)×1800mm (L)

Power Voltage

220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)

Machine Working Time

24 hours * 7 days

Warranty

1 year

Technical Assistance

Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.



Automatic Single Drinking Straw Packing Machine



Automatic Single Drinking Straw Packing Machine

Automatic Single Drinking Straw Packing Machine

Automatic Single Drinking Straw Packing Machine

Our Main parts cooperator as following brand,but standard parts all made from China.
